Aircraft Accessory Gearboxes(AAG)
AAG are complicated multifunctional complexes equipped by gas turbine engines-power units, AC and DC generators, plunger and centrifugal pumps. The purpose is to provide the start-up of the main engines and functioning of all electric, hydraulic and fuel aircraft systems in the air and on the earth.

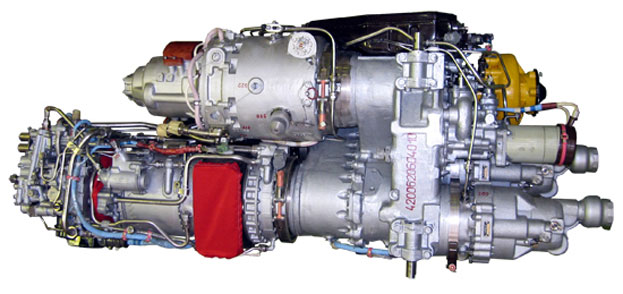

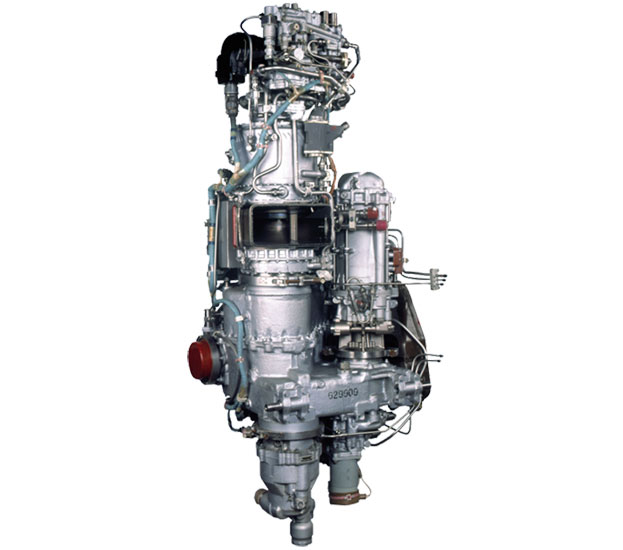

AAG KSA-2/3/4 are designed for installation on various modifications of MiG-29 fighters and are used for two RD-33 engines simultaneously, which has allowed to reduce the drive transmission weight for aircraft accessory and start-up, with high reliability requirements being secured.
MAIN TECHNICAL SPECIFICATIONS
KSA-2, KSA-3, KSA-4, KSA-33M
| KSA-2 | KSA-3 | KSA-4 | KSA-33M | |
|---|---|---|---|---|
| AAG type | Twin-engine | Twin-engine set with self-contained units | ||
| Type of aircraft | MiG-29 | MiG-29K/KUB, MiG-29M/M2, MiG-35 | ||
| Power being transferred, h.p. | 201,2 | 231,2 | 305,9 | 174х2 |
| Rotation speed at input shaft, RPM | 13443 | 13443 | 13443 | 13443 |
| Number of aircraft accessory | 5 | 5 | 5 | 5х2 |
| Mass, kg | 265 | 255 | 272 | 348,3 |

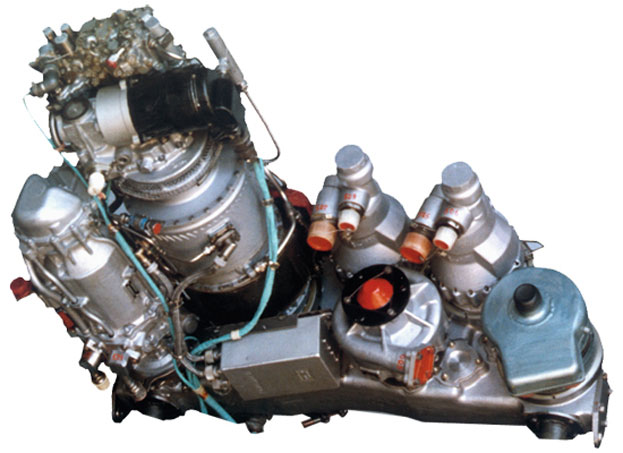

The production of a number of aircraft accessory gearboxes of the single-engine type has been deployed at the enterprise for foreign aircraft with the engines RD-33N and etc. – KSA-52, KSA-53 and others.
MAIN TECHNICAL SPECIFICATIONS
KSA-52, KSA-53
| KSA-52 | KSA-53 | |
|---|---|---|
| AAG type | Single-engine | |
| Type of engine | CMP-95 | |
| Type of aircraft | Super Mirage F-1 | Super Cheetah D-2 |
| Power being transferred, h.p. | 118,97 | 118,97 |
| Rotation speed at input shaft, RPM | 9066 | 9066 |
| Number of aircraft accessory | 5 | 5 |
| Mass, kg | 160 | 160 |
Developer: Klimov Corporation
